Measuring up correctly for glazing bead installation
For models 11-8110, 11-8120, 11-8220, 11-8222, 11-8320 and 11-8370
Installation using glazing bead angle brackets is visually very appealing and easy to do. The blind is attached here screwed directly in the glazing bead's narrow joint.
This type of installation is possible with very narrow or rounded glazing beads too.

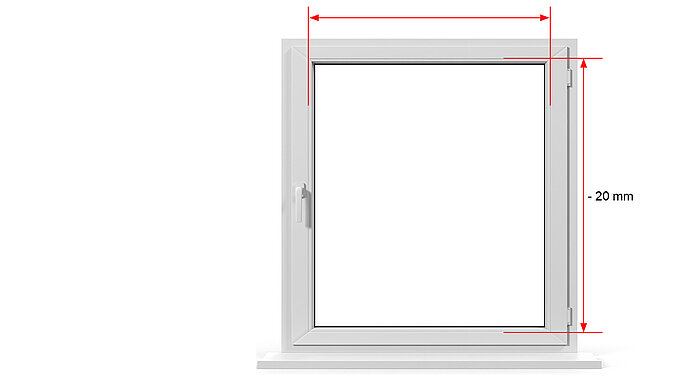

Ordering measurements:
Ordering width = glazing bead outer edge to glazing bead outer edge
Ordering height = glazing bead outer edge to glazing bead outer edge – 20 mm
Glazing bead installation is recommended for:
- Plastic windows
- Wooden windows
- Aluminium windows
