Measuring up correctly for window clip installation
For models 11-8220 and 11-8222
Measuring just under 11 x 29 mm, the little window clips are ideal for positioning blinds n the glazing bead without any drilling or screwing. The MHZ window clips can be firmly clipped on at the top and bottom of the frame.

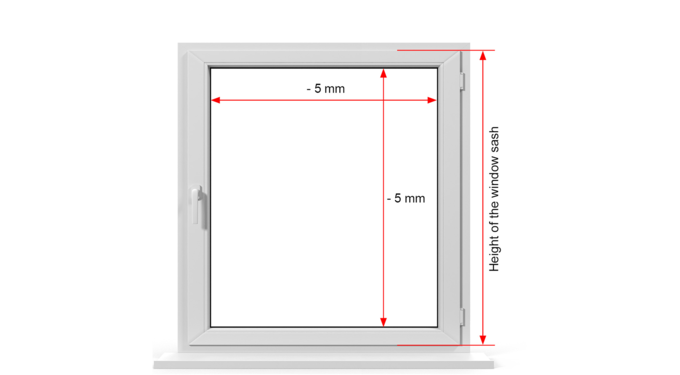

Ordering dimensions with straight glazing bead:
Ordering width = glazing bead measurement – 5 mm
Ordering height = glazing bead measurement – 5 mm
Also state height of the window sash (FH)

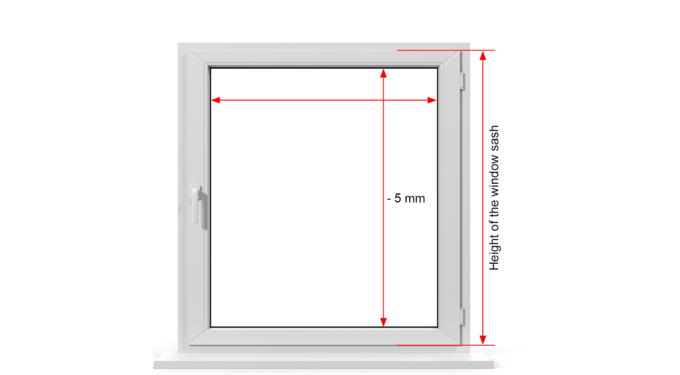

Ordering dimensions with sloped glazing bead*:
Ordering width = glazing bead measurement
Ordering height = glazing bead measurement – 5 mm
Also state height of the window sash (FH)
*Minimum glazing bead slope 2.5°
How to measure the glazing bead
To determine the glazing bead dimension, measure the clear height and width of the window glass (including the rubber seal). To account for any window tolerances, always measure the width in several places.
Sloped glazing bead
Where the glazing bead is sloped, measure the width as tightly as possible to the pane, inclusive of the seal.
Straight (rectangular) glazing bead
Where the glazing bead is straight, measure the width from fold to fold.
Window clip installation is recommended for:
- Plastic windows
- Wooden windows
- Aluminium windows
