Metal blinds s_onro

Roller shutter and sun blind made of aluminium micro slats

Cubic-style house with grey MHZ sonro metal blinds on all windows, modern architecture with terrace. MHZ sonro grey metal blinds with angular aluminum surface-mounted box in front of large glass doors, view into the living room.

With its modern form, s_onro combines blind and roller shutter functions in fascinating fashion. At a pitch of 20 degrees and above the aluminium blind shields the interior from direct incoming sunlight.

The unique construction enables transparent privacy screening and sunshade and also lets the room be blacked out. The amount of incoming light can be individually determined by opening and closing the blind. With its high level of transparency, s_onro ensures sufficient light inside and the ability to see outside.


s_onro product benefits

  • Dual function: Privacy screening and sunshade or blackout
  • Blackout when blind is closed
  • Modern aluminium look
  • Low weight thanks to roll-formed components
  • Provides perfect daylight
  • High reduction in solar energy
  • Choice of colour scheme
  • Extremely wind resistant, suitable for tall buildings

Discover the possibilities

Modern white single-family house with closed external sun protection screens on all windows.
Bright living room with large windows, black leather sofa, and MHZ sonro metal blinds as sun and privacy protection.
Modern kitchen-dining area with large windows and external MHZ SONRO metal blinds, wooden table in foreground.
Hospital facade in Hanover with MHZ s_onro metal blinds and color-segmented exterior cladding.

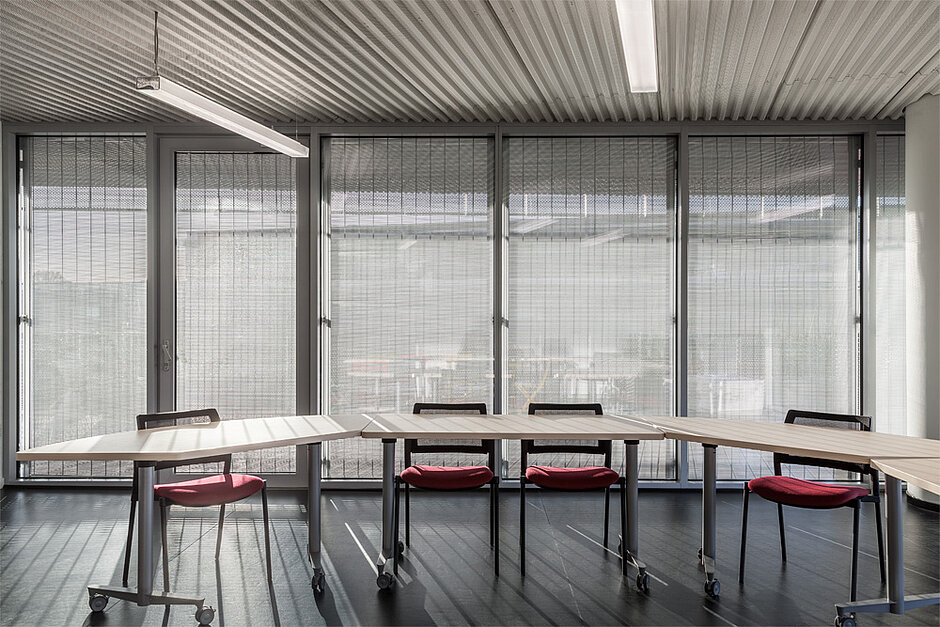

Lounge area with large windows and Sonro metal blinds providing glare-free sun and privacy protection.
Exterior view of a window with closed Sonro metal blind in a light brick facade.

Technical benefits

Wind

The blinds conform to wind resistance class 6* (equates to resisting winds of up to 26 m/s). That makes the s_onro much more stable in wind than traditional external blinds and textile blinds. * Dependent on dimensions and installation situation

Sun

As soon as the sun rises to more than 20º above the horizon, any direct penetration of the sun’s rays is completely cut out.

Heat

The blinds are able to prevent up to around 90% of incident solar energy. Air-conditioning costs can thus be greatly reduced or air conditioning not used at all.

Seeing out

High level of transparency from inside to outside thanks to an opening percentage of c. 18% (with a sightline angle from inside of 10°).

Recycling

The aluminium slats can be easily recycled.

The standard blind colours

Solid white surface representing MHZ technical colour RAL 9016 (colour code 172).

similar to RAL 9016

White

Solid silver-grey surface representing MHZ technical colour RAL 9006 (colour code 901).

similar to RAL 9006

Silver

Solid surface in Grey Aluminium (RAL 9007) according to MHZ color standard.

similar to RAL 9007

Grey aluminium

Solid dark grey surface representing MHZ technical colour DE 703 (colour code 651).

similar to DB703

Anthracite

Solid anthracite grey surface representing MHZ technical colour RAL 7016 (colour code 611).

similar to RAL 7016

Anthracite grey

Version

Horizontal metal slats of MHZ s_onro with technical profile drawing and dimensions of 18.5 mm × 7.8 mm.
  • Material: Aluminium slats, roll-formed
  • Width: min. 0.80 m; max. 2.40 m
  • Height: max. 3.00 m
  • Surface area: max. 6 m2
  • Blind weight: c.  5.8 kg/m²
  • Energy reduction: gtotal = 0.05 (1),  gtotal = 0.03 (2)
  • Wind stability: max. resistance class 6*
  • Drive system: 230V tubular motor
  • Control system protection requirement: Frost sensor



We reserve the right to make technical changes without prior notice.

____

(1) Metal blind in combination with thermally insulating glazing (total energy transmittance of the glazing as per EN 410: 0.53)
(2) Metal blind in combination with sunshade glazing (total energy transmittance of the glazing as per EN 410: 0.36)

* Dependent on dimensions and installation situation
